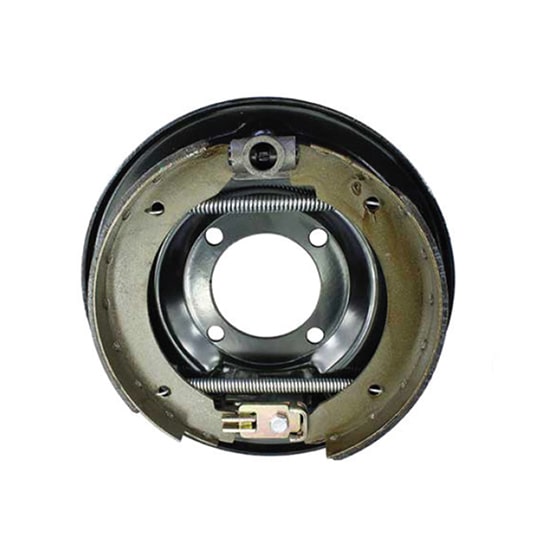

Mechanical drum brakes are used for applications where simplicity and robust components are required. The most popular method of operation is using cables.
| Mechanical Drum Brakes Lever Details | |
|---|---|
| Operation type | Mechanical Lever |
| Recommended maximum load on 13”/14” wheels | 1450 kg per pair |
| Recommended maximum load on 15”/16” wheels | 1200 kg per pair |
| Mounting Detail | 4 x 7/16” unf x 76.15mm pcd |
| Max cable pull input (kg) per brake | 165 kg |
| Description | To Fit Axle Size | Number of Holes & PCD |
|---|---|---|
| 9” Mechanical Lever Mounting Plate (39mm bore) | 39mm Round | 4 Holes on 76.15mm PCD |
| 9” Mechanical Lever Mounting Plate | 40mm square | 4 Holes on 76.15mm PCD |
| 9” Mechanical Lever Mounting Plate (45mm bore s/line) | 45mm Round | 4 Holes on 76.15mm PCD |
| 9” Mechanical Lever Mounting Plate (45mm square) | 45mm Square | 4 Holes on 76.15mm PCD |
| 9” Mechanical Centre Pull Mounting Plate | 39mm Round | 4 Holes on 76.15mm PCD |
| 9” Mechanical Centre Pull Mounting Plate | 45mm Round | 4 Holes on 76.15mm PCD |
