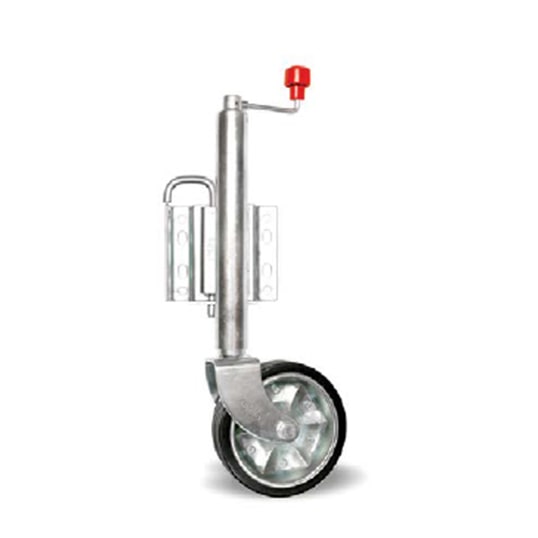

Description: Jockey Wheel,200mm (8”) Vertical locking pin swivel bracket, Zinc
| Specifications | |
|---|---|
| Wheel Size (D): | 200mm dia. |
| Mounting: | Swivel |
| Static Capacity: | 500 kg |
| Tube O.D.: | 48mm |
| Closed H1: | 658mm |
| Open H2: | 921mm |
| Closed G1: | 458mm |
| Open G2: | 721mm |
| U1, U2: | 55mm, 113mm |
| W: | 135mm |
| Weight: | 11 kg |
The Premium 8” Heavy Duty Jockey Wheel is ideal for industrial or commercial applications. Added safety comes from the pull pin locking into the swivel bracket limiting lateral forces. With a 500kg static capacity it is a great companion for large plant trailers.
