Stabilizer Control Couplings

zoom img

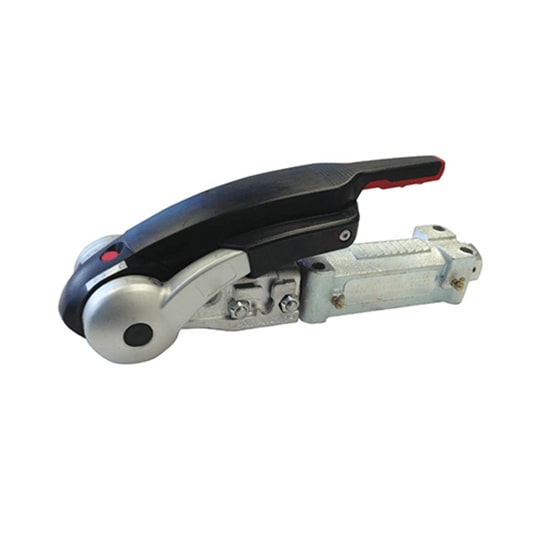

Stabilizer Control Couplings

Description: Override snap on 4 hole coupling with adjuster and 3/4” master cylinder. Suits hydraulic brakes.

Specifications
Capacity : 2500 kg
Suits Ball Size: 50mm
Mounting Pattern: 184mm x 54mm
Hole Diameter: 13.5mm
Ball to First Hole: 137mm
Surface Finish: Zinc plated

Specifc coupling designed to reduce trailer sway. This 50mm ball type fixed coupling is designed to be used on trailer up to 2500 kg ATM (total loaded mass) and with a maximum tow ball weight of 250 kg. This unique product incorporates a clamping system that grips the sides of a specially designed 50mm towball and resists movement of the trailer. This action slows down any tendency for the trailer to sway or veer from a straight condition. This is particularly beneficial when large trailers such as caravans are buffeted by side winds or by a passing truck and trailer combination.
